description

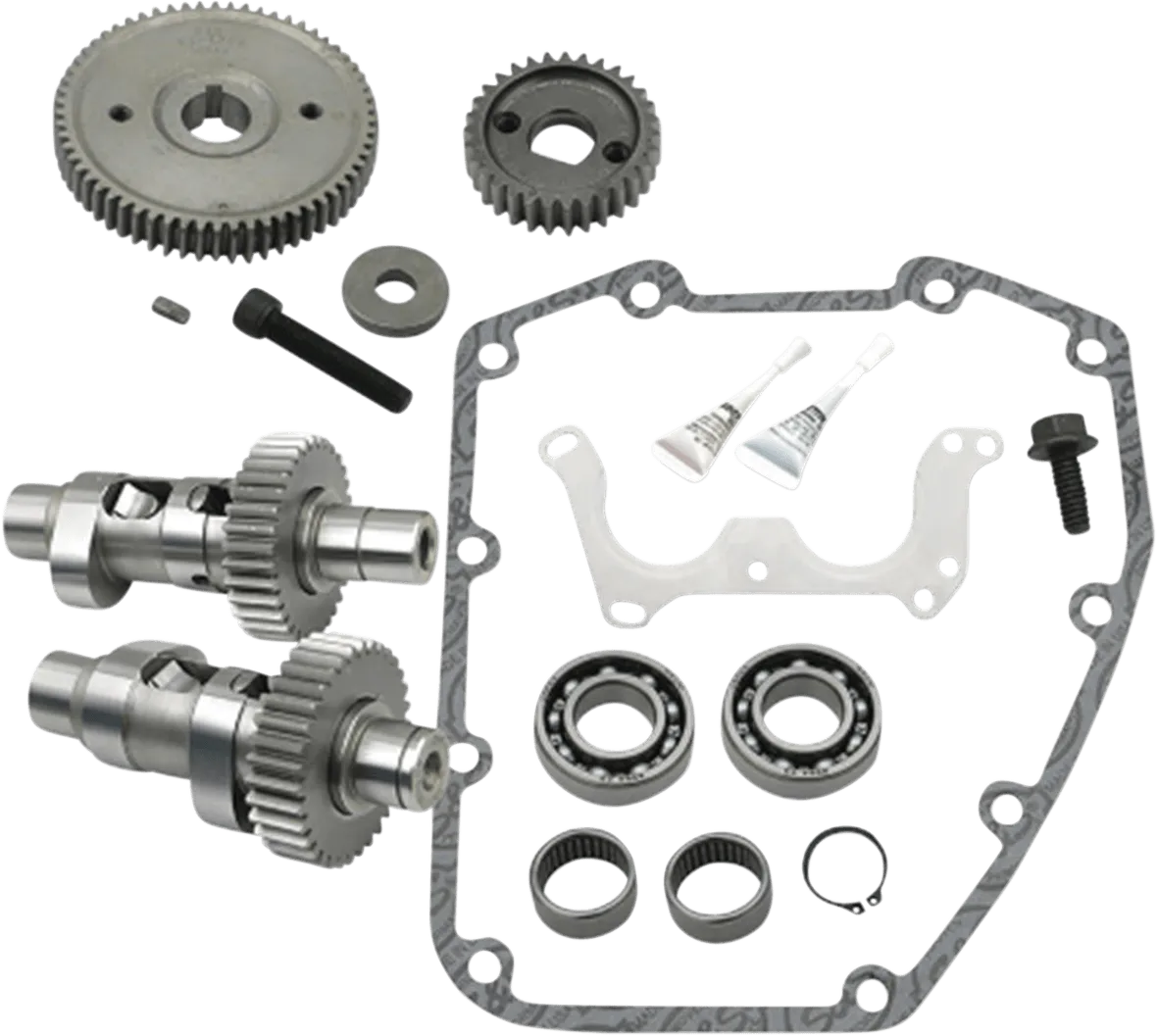

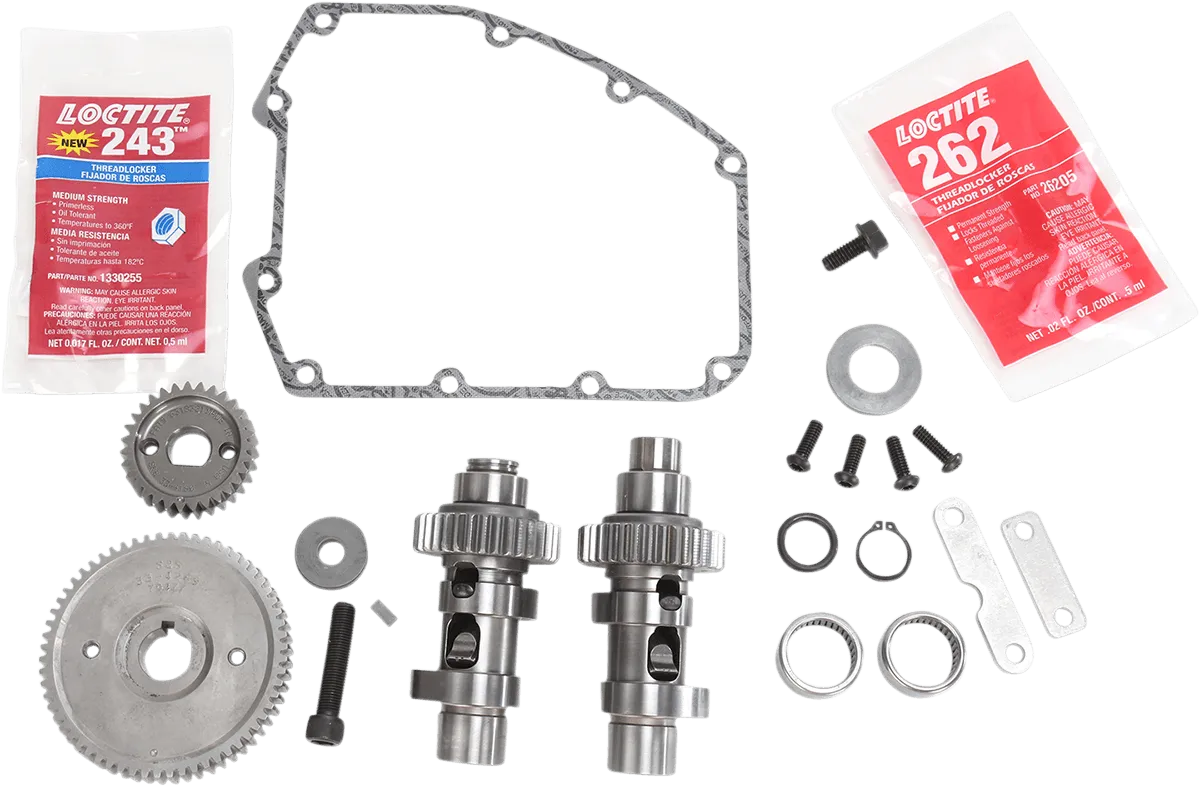

Start any engine regardless of displacement or compression ratio with a stock starter. Save your starter and battery; tested for 10,000 starts without running battery down. Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance. Available in chain drive and gear drive versions. All chain-drive cams include installation kit. All gear-drive cams include 4-gear set and installation kit. Gear-drive cams also available with inner gears only; intended for cam replacement for motors that have already been converted to an S&S gear-drive system. Made in the u. s. a. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. NOTE: Due to the inherent characteristics of gear drives, you may experience more valve train noise. Bolt in cam for 103in. Twin Cam motors. Use with stock heads and low restriction intake and exhaust. Broad torque curve improves output over stock over the entire rpm range Start any engine regardless of displacement or compression ratio with a stock starter. Save your starter and battery; tested for 10,000 starts without running battery down. Allow for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance. Available in chain drive and gear drive versions. All chain-drive cams include installation kit. All gear-drive cams include 4-gear set and installation kit. Gear-drive cams also available with inner gears only; intended for cam replacement for motors that have already been converted to an S&S gear-drive system. Made in the u. s. a. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. NOTE: Due to the inherent characteristics of gear drives, you may experience more valve train noise. Bolt in cam for 103in. Twin Cam motors. Use with stock heads and low restriction intake and exhaust. Broad torque curve improves output over stock over the entire rpm range Intake Open 13 deg. Intake Close 33 deg. Duration (at .053) 226 deg. Valve Lift .585in. Exhaust 50 deg. Exhaust Close 22 deg. Duration (at .053) 252 deg. Valve Lift .585in.
fitment
Harley Davidson:- FLD Switchback 2012-2016
- FLHR Road King 2007-2016
- FLHRC Road King Classic 2007-2013
- FLHRS Road King Custom 2007
- FLHT Electra Glide Standard 2007-2009
- FLHTC Electra Glide Classic 2007-2013
- FLHTCU Electra Glide Ultra Classic 2007-2016
- FLHTCUL Electra Glide Ultra Classic Low 2015-2016
- FLHTCUTG Tri Glide Ultra 2014-2016
- FLHTCUTG Tri Glide Ultra Classic 2009-2013
- FLHTK Electra Glide Ultra Limited 2010-2014
- FLHTK Ultra Limited 2015-2016
- FLHTKL Ultra Limited Low 2015-2016
- FLHX Street Glide 2007-2016
- FLHXS Street Glide Special 2014-2016
- FLHXXX Street Glide Trike 2010-2011
- FLRT Freewheeler 2015-2016
- FLS Softail Slim 2012-2017
- FLSTC Heritage Softail Classic 2007-2017
- FLSTF Fat Boy 2007-2017
- FLSTFB Fat Boy Lo 2010-2016
- FLSTN Softail Deluxe 2007-2017
- FLSTSB Cross Bones 2008-2011
- FLSTSC Softail Springer Classic 2007
- FLTR Road Glide 2007-2009
- FLTRU Road Glide Ultra 2011-2013
- FLTRU Road Glide Ultra 2016
- FLTRX Road Glide 2015-2016
- FLTRX Road Glide Custom 2010-2013
- FLTRXS Road Glide Special 2015-2016
- FXCW Rocker 2008-2009
- FXCWC Rocker C 2008-2011
- FXD Dyna Super Glide 2007-2010
- FXDB Street Bob 2007-2017
- FXDBI Street Bob 2006
- FXDC Super Glide Custom 2007-2014
- FXDCI Super Glide Custom 2006
- FXDF Fat Bob 2008-2017
- FXDI Dyna Super Glide 2006
- FXDI35 Dyna 35th Anniversary Super Glide 2006
- FXDL Dyna Low Rider 2007-2009
- FXDL Low Rider 2014-2017
- FXDLI Dyna Low Rider 2006
- FXDWG Dyna Wide Glide 2007-2008
- FXDWG Dyna Wide Glide 2010-2017
- FXDWGI Dyna Wide Glide 2006
- FXS Blackline 2011-2013
- FXSB Breakout 2013-2017
- FXST Softail Standard 2007
- FXSTB Night Train 2007-2009
- FXSTC Softail Custom 2007-2010
- FXSTD Softail Deuce 2007
